Floor Spring


Contact Us
Name Model Number Brand Engine Cylinder Material Finish Color Closing Force

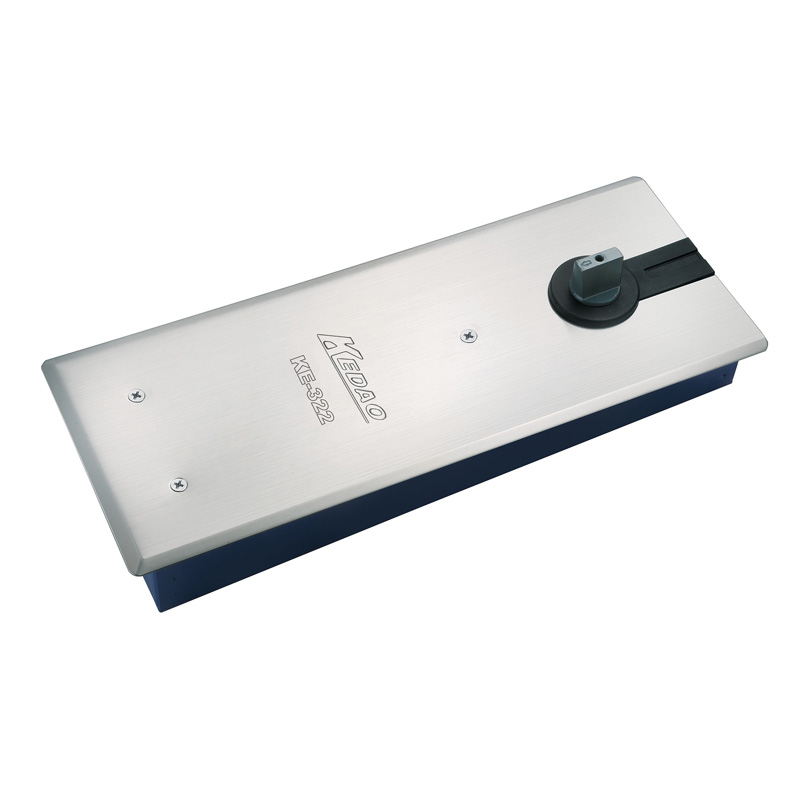

KE-322 FLOOR SPRING KE-322 KEDAO Double Cylinder Iron and Stainless Steel Polish/Satin Sliver,black,gold and other colors EN2, EN3,EN4 for optional


Max Door Width Max Door Weight Max Open Degree Hold-Open Latching Speed Adjustment Closing Speed Adjustment Application Temperature
1200mm 120kg 120 degree 90 degree or 120 degree or no hold 0-20° 20°-90° -40°-60°

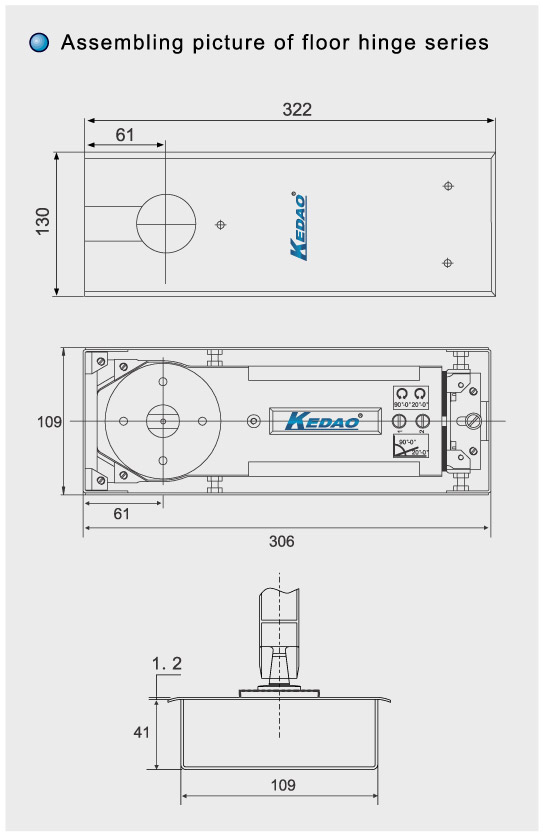

Dimension:Length*Width*Height Speed control Cycles Test Warranty Length(cm) Width(cm) Height(cm) Weight(Kg)
322mm*130mm*41mm Two Section Speed Control 500,000 cycles opening and closing 3 years 35 29 19 5.375
