Floor Spring


Contact Us
Name Model Number Brand Engine Cylinder Material Finish Color Closing Force

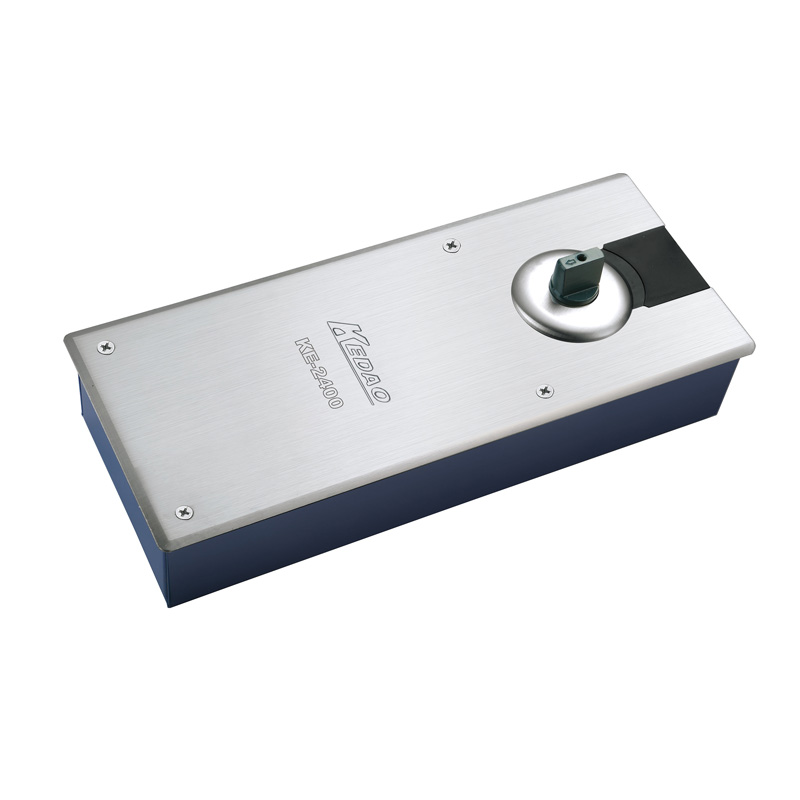

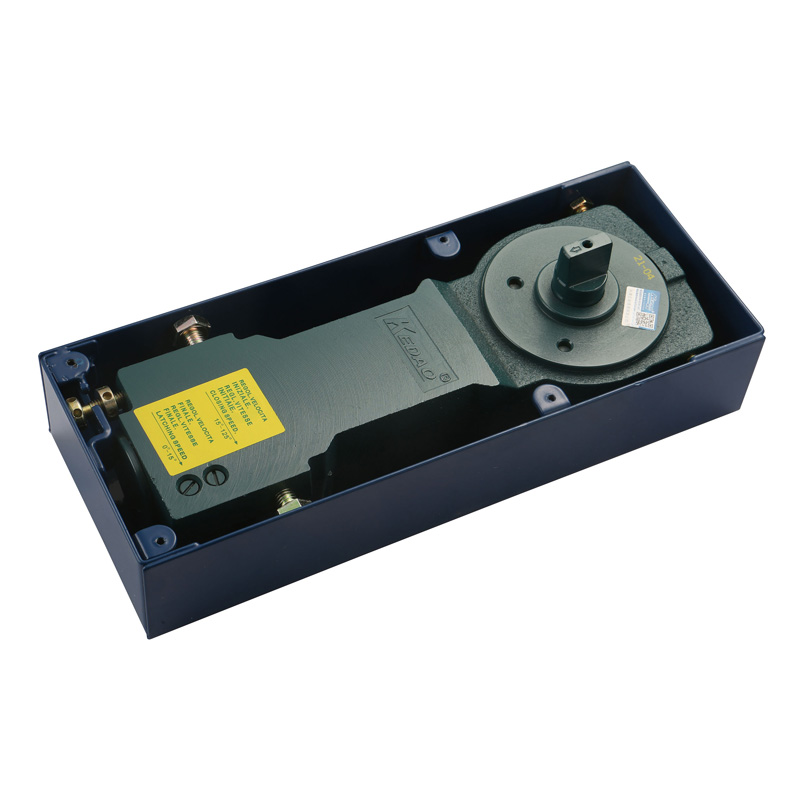

KE-2400 FLOOR SPRING KE-2400 Kedao Single Cylinder Iron and Stainless Steel Polish/Satin Sliver,black,gold and other colors EN2, EN3,EN4 for optional


Max Door Width Max Door Weight Max Open Degree Hold-Open Latching Speed Adjustment Closing Speed Adjustment Application Temperature
1500mm 300kg 120 degree 90 degree or 120 degree or no hold 0-20° 20°-90° -40°-60°


Dimension:Length*Width*Height Speed control Cycles Test Warranty Length(cm) Width(cm) Height(cm) Weight(Kg)
319mm*136mm*58mm Two Section Speed Control 500,000 cycles opening and closing 3 years 34 34 26 7.96
